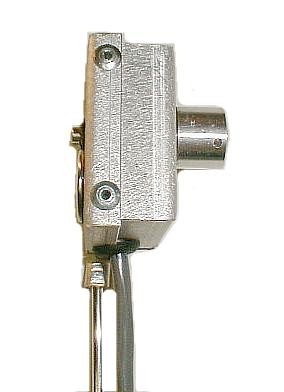

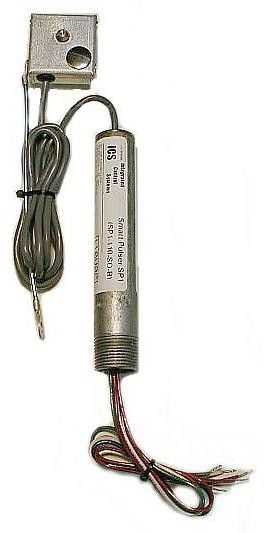

SP1 Smart Pulser

The SP1 Smart Pulser was designed to fit any Veeder-Root™ computer, so stocking multiple pulser models is unnecessary. The SP1 was designed to be very durable, and contains special circuitry to eliminate errors, which makes is more accurate than any other pulser on the market.

 FEATURES

●  ALL METAL Construction!

●  All aluminum housing. (No plastic!)

●  Machined aluminum coupling shaft. (No more breakage!)

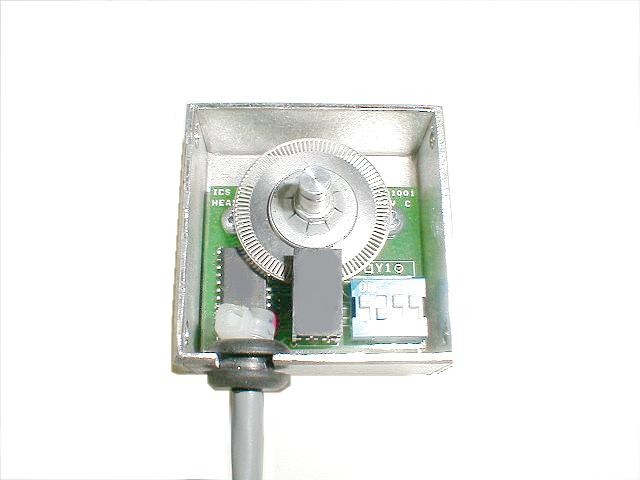

●  Stainless Steel encoder wheel is impervious to the elements.

●  Dual bearing construction promotes long pulser life.

●  Microprocessor controlled direction sensing eliminates over-counts due to pump vibration or meter backlash.

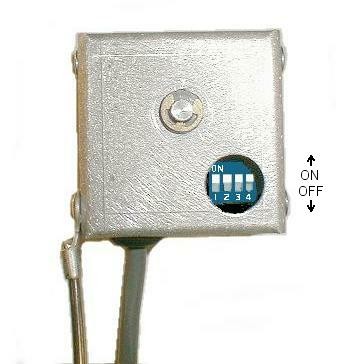

●  Configuration setting made in pulser head for easy access.

●  Intrinsically safe circuitry, no conduit required!

●  Environmentally coated circuitry eliminates moisture problems.

●  Heavily filtered power supply eliminates noise problems.

●  Extended temperature operation. (-40 to 150 degrees F)

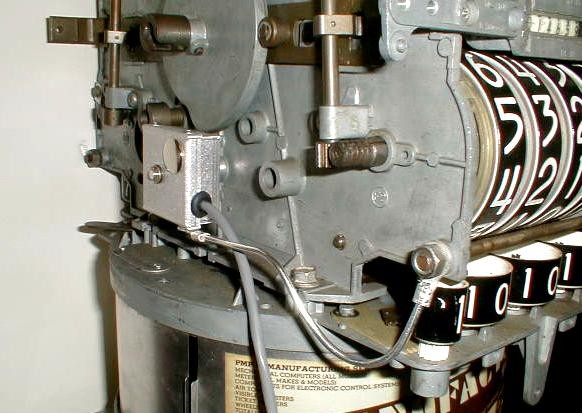

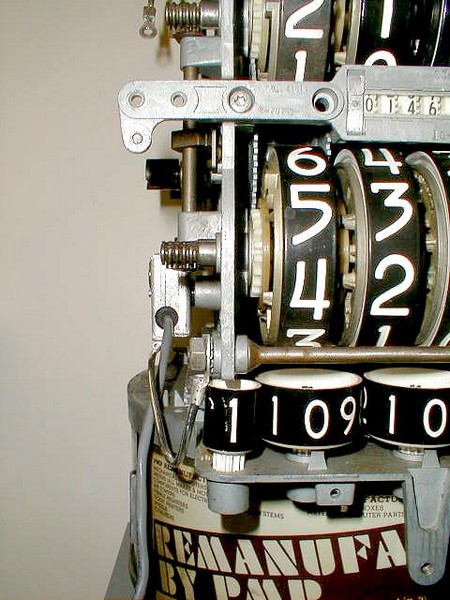

●  Compatible with ALL Veeder Root mechanical computers

    (101, 2001, 2002, 2002E, VR-10, VR-10/4) for money or gallons.

●  Small size allows mounting where other pulsers cannot.

●  12VDC and 120VAC models available.

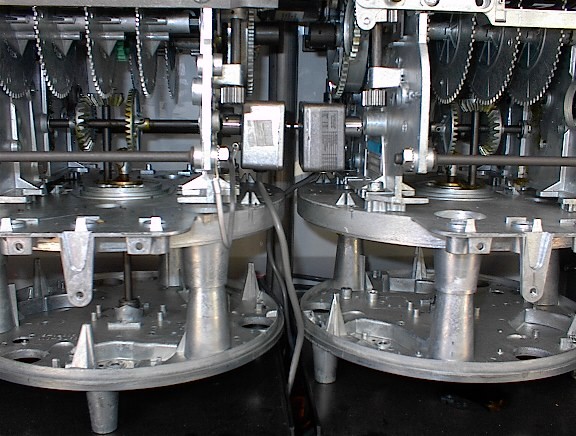

●  Dual output model available.

●  2 year warranty

INPUT

(Black Wires)

Output

(Red Wires)

Operating Voltage

12VDC (SP1-12-SO or SP1-12-DO)

120VAC (SP1-110-SO or SP1-110-DO)

Switching Voltage

5 to 300 Volts AC or DC

Operating Temperature

-40 to +150 degrees F

Maximum Current

300 mA

Maximum Speed

240 rpm

ON Resistance

25-35 Ohms

MODEL NUMBER

DESCRIPTION

SP1-12-SO

SP1 Pulser, 12 volts DC, Single Output

SP1-12-DO

SP1 Pulser, 12 volts DC, Dual Output

SP1-110-SO

SP1 Pulser, 110 volts AC, Single Output

SP1-110-DO

SP1 Pulser, 110 volts AC, Dual Output

MODEL NUMBER

DESCRIPTION

SP1-EXT-DP

Machined Aluminum Shaft Adapter

SP1-EXT-FLEX

7 in. Flexible Shaft Adapter
