MR1 Pulser

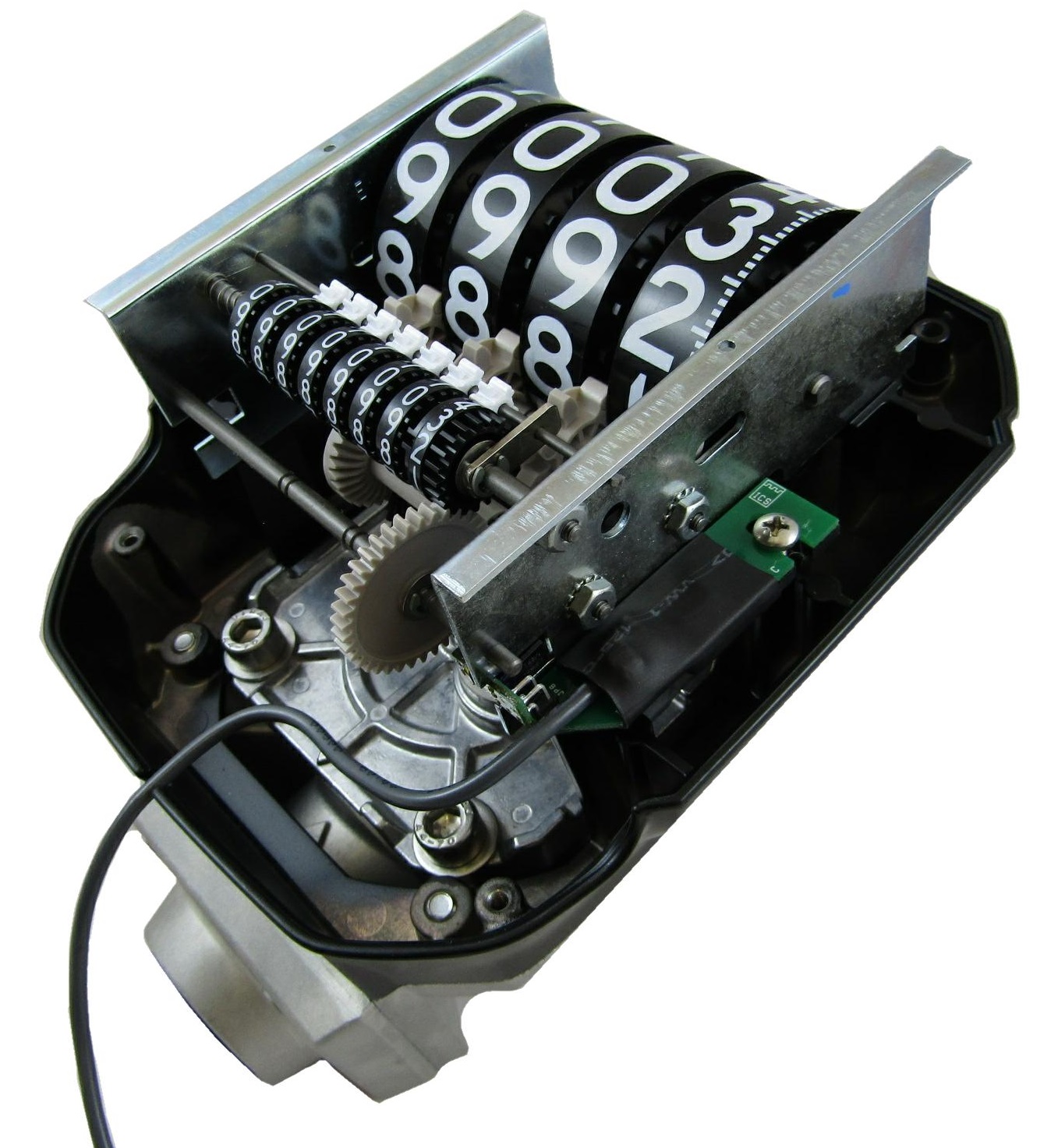

The MR1 Pulser was designed to fit all FillRite, Dresser Wayne 700R, GPI MR 5-30 and GPI QM40, QM150 or QM240 meter-registers. The MR1 contains a digital pulse filter, which eliminates overcounting due to vibration.

FEATURES

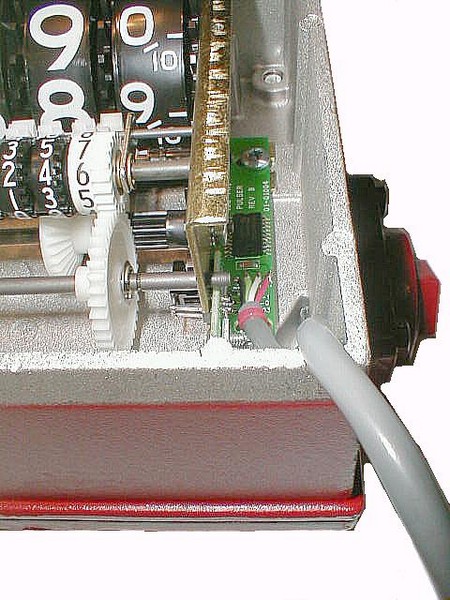

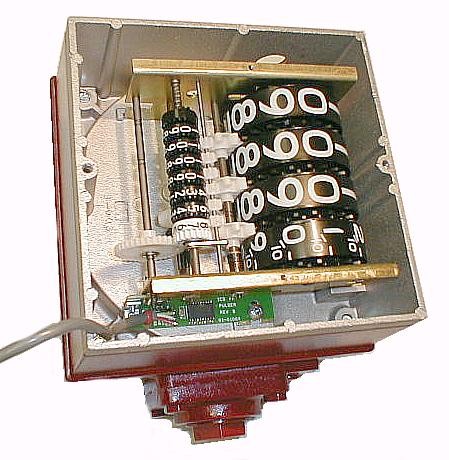

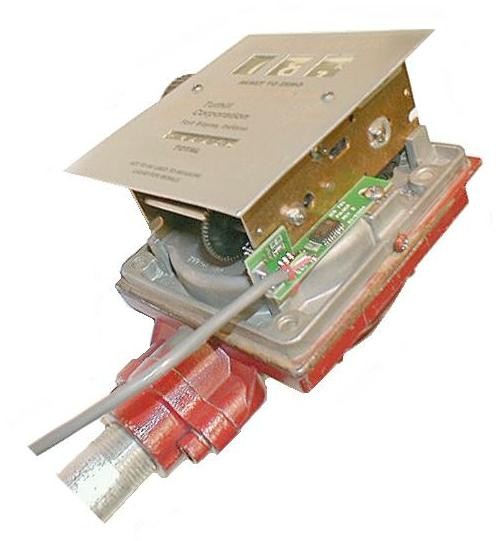

●  Fits ALL variations of the Fill Rite 800 or 900 register!

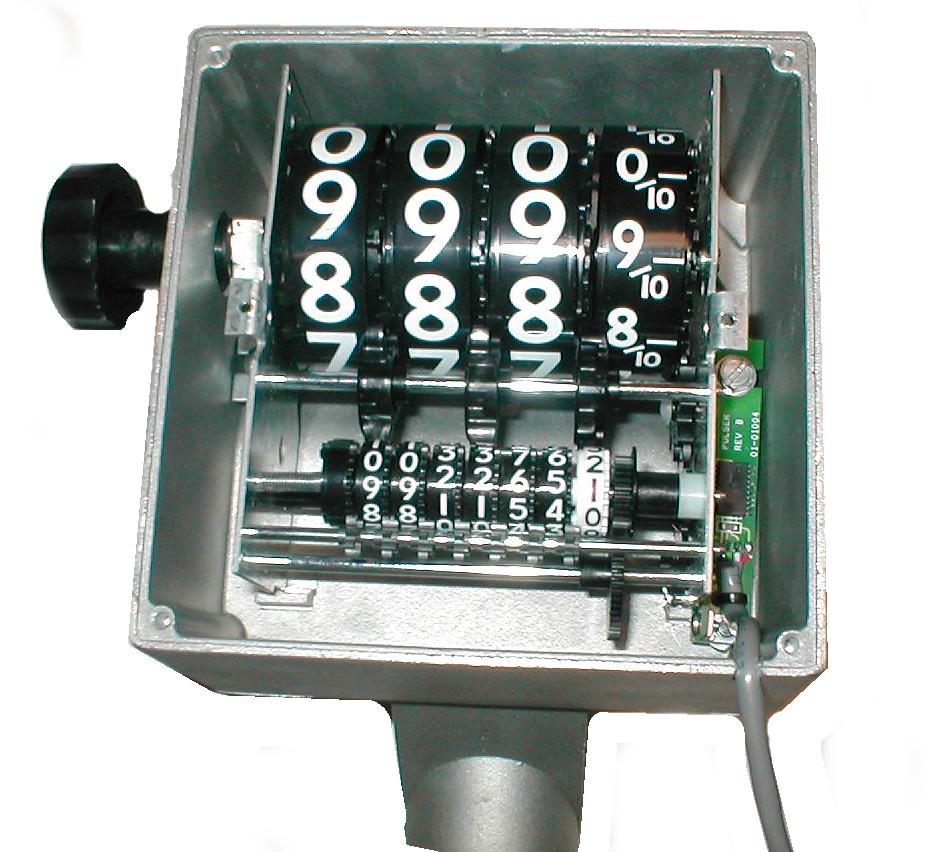

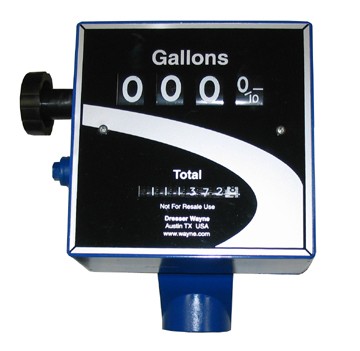

●  Fits the Dresser Wayne model 700R meter-registers!

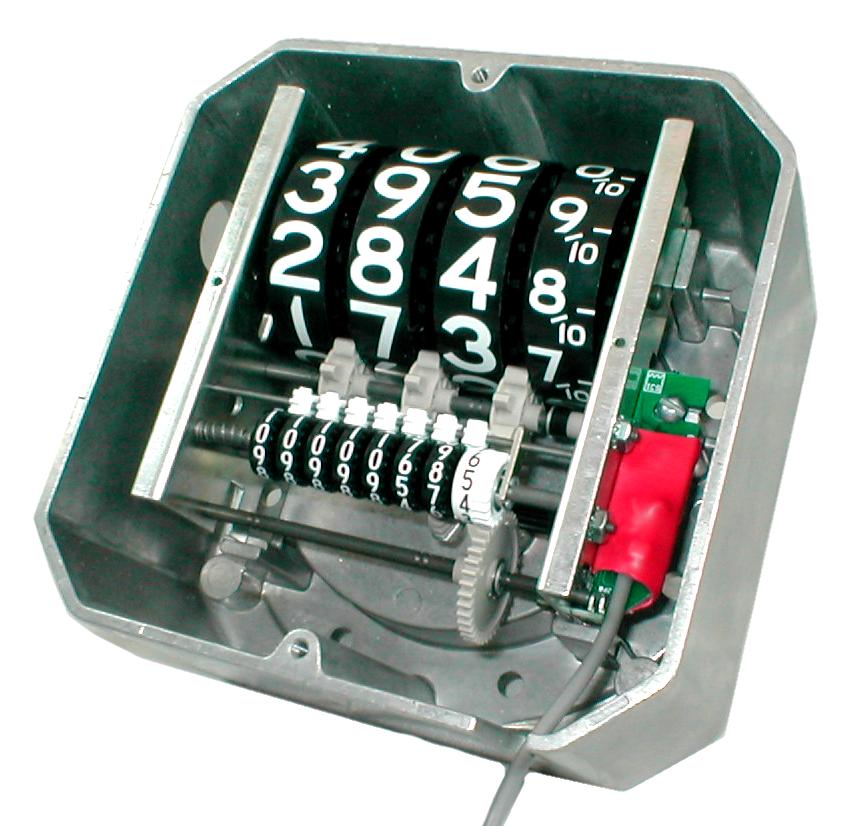

●  Fits the new GPI model MR-5-30 Register!

●  10 pulses per gallon output, no configuration required.

●  Digital pulse filtering eliminates overcounts.

●  Simple bolt on installation.

●  Intrinsically safe circuitry, no conduit required!

●  Environmentally coated circuitry eliminates moisture problems.

●  Heavily filtered power supply eliminates noise problems.

●  Extended temperature operation. (-40 to 150 degrees F)

●  12VDC and 110VAC models available.

●  Dual output model available.

●  2 year warranty

INPUT

(Black Wires)

Output

(Red Wires)

Operating Voltage

12VDC (MR1-12-SO or MR1-12-DO)

120VAC (MR1-110-SO or MR1-110-DO)

Switching Voltage

5 to 300 Volts AC or DC

Operating Temperature

-40 to +150 degrees F

Maximum Current

300 mA

Maximum Speed

240 rpm

ON Resistance

25-35 Ohms

MODEL NUMBER

DESCRIPTION

MR1-12-SO

MR1 Pulser, 12 volts DC, Single Output

MR1-12-DO

MR1 Pulser, 12 volts DC, Dual Output

MR1-110-SO

MR1 Pulser, 110 volts AC, Single Output

MR1-110-DO

MR1 Pulser, 110 volts AC, Dual Output
